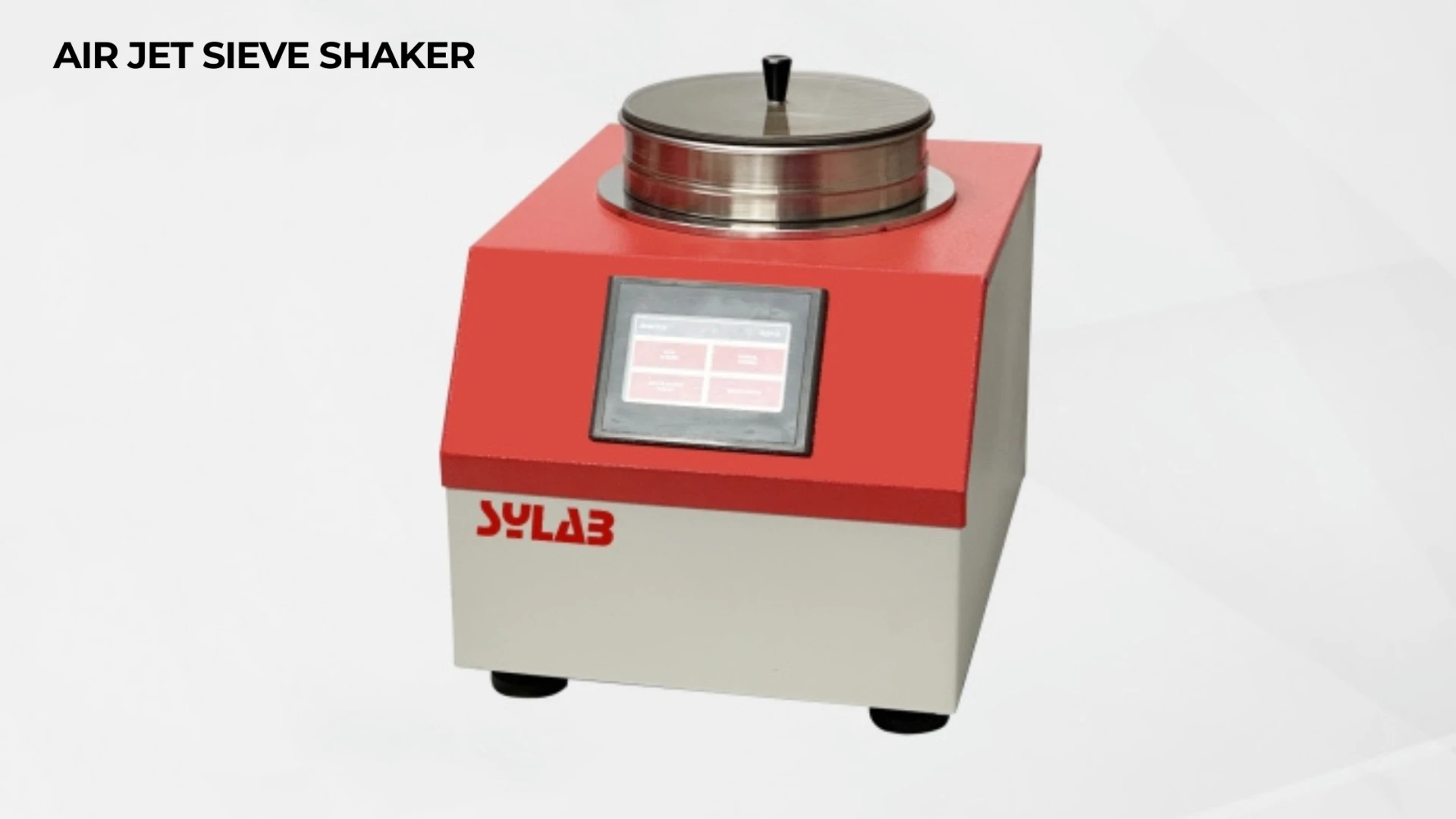

Air Jet Sieve Shaker: Precise Particle Size Analysis for Fine Powders

What Is an Air Jet Sieve Shaker and How Does It Work?

In industries where fine powder separation and precision particle size analysis are essential, the Air Jet Sieve Shaker has become one of the most reliable and efficient instruments. Whether in pharmaceuticals, chemicals, food processing, or construction materials, this system ensures accurate, repeatable, and contamination-free results—especially for particles smaller than 100 microns.

Unlike traditional sieve shakers that depend on vibration or mechanical movement, the Air Jet Sieve Shaker uses air pressure and vacuum suction to separate fine powders. This makes it the perfect tool for analyzing light, dry, or electrostatically charged materials, delivering fast and clean results without damaging delicate particles.

What Is an Air Jet Sieve Shaker?

An Air Jet Sieve Shaker is an advanced laboratory instrument designed for particle size distribution analysis of fine powders. It works on a simple yet highly effective principle—using a high-velocity air jet that passes through a sieve mesh while a vacuum system draws air downward.

This airflow gently disperses and classifies particles according to their size, ensuring accurate, reproducible, and contamination-free results. Because of its efficiency, it’s widely used in research labs, quality control departments, and manufacturing units across diverse sectors.

Working Principle of an Air Jet Sieve Shaker

The operation of an Air Jet Sieve Shaker follows a streamlined and automated process that minimizes manual intervention while maximizing accuracy.

Step 1: Setup

• A single test sieve (usually 200 mm or 8 inches in diameter) is placed horizontally in the shaker chamber.
•

• A measured powder sample (5–100 grams) is loaded onto the sieve.
•

• A vacuum system is connected beneath the sieve holder to create suction.
•


Step 2: Air Flow Generation

• When the machine starts, the vacuum pump produces a strong downward airflow through the sieve mesh.
•

• A rotating nozzle arm inside the chamber directs a tangential air jet across the sieve surface.
•


Step 3: Particle Separation

• The air jet lifts, loosens, and disperses fine particles in the sample.
•

• Smaller particles pass through the sieve openings and are collected in the vacuum receptacle.
•

• Larger particles remain on the sieve surface for weighing and analysis.
•


Step 4: Analysis

• The difference in weight before and after sieving indicates how much material is below a certain size.
•

• Modern air jet sieves feature digital control panels and software integration, allowing automatic recording, graph generation, and report export.
•


Key Components of an Air Jet Sieve Shaker

1. Test Sieve – Available in different mesh sizes to match your analysis requirements.
2.

3. Vacuum Pump – Generates the required suction and maintains consistent air pressure.
4.

5. Rotating Nozzle Arm – Continuously rotates beneath the sieve, ensuring uniform air distribution and preventing particle buildup.
6.

7. Control Unit – Used to adjust testing parameters like duration, vacuum strength, and nozzle speed.
8.

9. Collection Receptacle – Collects and stores fine particles for weighing or disposal.
10.


Advantages of Air Jet Sieve Shakers

• Highly Efficient for Fine Powders: Perfect for particles below 100 microns such as talc, cement, silica, flour, pigments, and pharmaceutical powders.
•

• Non-Mechanical Operation: Prevents particle damage and avoids mesh wear or sample contamination.
•

• Fast and Accurate: Delivers repeatable results within minutes, improving testing throughput.
•

• Clean and Dust-Free: The airflow prevents clogging and ensures a clean separation process.
•

• Minimal Sample Loss: Vacuum collection ensures even the finest particles are recovered.
•

• Easy Maintenance: Only one sieve is used per test, making cleaning and setup simple.
•


Applications of Air Jet Sieving

• Pharmaceutical Industry: Ensures uniform particle size in active pharmaceutical ingredients (APIs) and excipients.
•

• Construction Materials: Used for quality control of cement, gypsum, and lime powder.
•

• Chemical Industry: Helps classify catalysts, synthetic resins, and pigments by particle size.
•

• Food Processing: Used to test flour, starch, spices, and additives for uniformity.
•

• Cosmetics: Ensures smooth texture and consistency in powder-based skincare and makeup products.
•


Conclusion

The Air Jet Sieve Shaker combines speed, precision, and cleanliness in one compact system—making it indispensable for laboratories and industries handling fine powders. By using airflow instead of mechanical motion, it provides accurate, reproducible, and efficient results every time.

If your work demands high-precision particle size analysis with minimal sample loss and faster turnaround, an Air Jet Sieve Shaker is the perfect solution for your lab.
